# Solution Exercise 202: get greatest common divisor GCD graphically with python tkinter

Aug 26, 2020

#### Exercise202

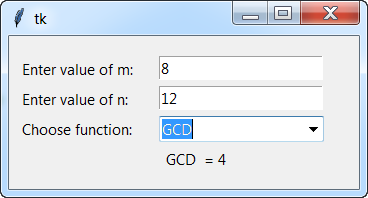

Create a Tkinter GUI interface, which calculates the greatest common divisor GCD and the least common multiple LCM graphically as shown in the figure below:

#### Solution

``from tkinter import *from tkinter import ttkroot = Tk ()root.geometry ("350x170")# See solution Exercise 65: https://www.my-courses.net/2020/07/solution-exercise-65-greatest-common.htmldef gcd ( m , n ):    d = m    while ( m%d != 0 or n%d != 0):        d = d - 1    return d# See solution Exercise 66: https://www.my-courses.net/2020/07/solution-exercise-66-least-common.htmldef lcm ( m , n ):    M = m    while ( M%m != 0 or M%n != 0 ):        M = M + 1    return Mdef action (event):    # we get the selected value from the combobox list    select = comboList.get ()        # retrieve the value of m from the entry input field    m = int (entry_m.get ())    # retrieve the value of n from the entry input field    n = int (entry_n.get ())        if (select == "GCD"):        lblResult ['text'] = " GCD(m , n)  = " + str (gcd (m, n))    else:        lblResult ['text'] = " LCM(m , n)  = " + str (lcm (m, n))        # Creation of the label and input field for the integer mlbl_m = Label (root, text = "Enter value of m:")entry_m = Entry (root)lbl_m.place (x = 10, y = 20)entry_m.place (x = 150, y = 20)# Creation of the label and input field for the integer nlbl_n = Label (root, text = "Enter value of n:")lbl_n.place (x = 10, y = 50)entry_n = Entry (root)entry_n.place (x = 150, y = 50)lblChoose = Label (root, text = "Choose function:")lblChoose.place (x = 10, y = 80)# Creation of the combobox list to select GCD or LCMcomboList = ttk.Combobox(root , values = ["GCD" , "LCM"])comboList.place (x = 150, y = 80, width = 165)comboList.bind ("<<ComboboxSelected>>", action)# Create a label that displays the resultlblResult = Label (root, text = "Result:")lblResult.place (x = 150, y = 110)root.mainloop ()``
